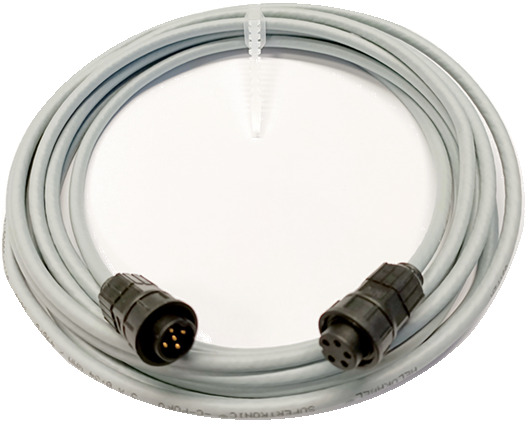

Connecting cable MPP 30-30/70-35 - smart memo - 401100

Menu-driven pressure test procedures for water pipes according to German DVGW W 400-2 - Contraction procedure - Accelerated normal procedure - Normal procedure - Influence-minimized normal procedure

Menu-driven test procedures for pressure tests on water pipes according to rules and regulations of EN 805 (Europe): - Contraction procedure - Normal procedure

Electronic pressure test case for pressure tests with connection possibility of up to 5 external pressure or temperature sensors. - the test procedures are menu-guided and can be carried out with simple Data entry dialog - a freely programmable pressure test is included - optional test sequences for gas and water tightness tests e.g. according to DVGW, ÖVGW, EWE, Avacon, WEVG. - a subsequent addition of test sequences is possible easily - large, illuminated display, even in direct sunlight easy to read - Data entry and signature via touch display and foil keys - Stylus for the touch display included - Data memory for hundreds of measurements, depending on test sequence - Communication via Bluetooth for update, data transmission, printer - LTE / GPS module (optional) - robust case (IP 67) - Operating time approx. 200 hours, extension with power supply possible from outside Dimensions: 220 x 90 x 168 mm Weight: approx. 1450 g

Fully automatic test pump for simplified execution of water pressure tests according to DVGW W 400-2, ÖVGW W 101, EN 805 - max. outlet pressure 30 bar - delivery volume 30 liter/min. - power supply 230 Volt / 400 Volt - 50 Hz - power consumption 2,2 kW - test pressure adjustable in 0,1 bar steps - frequency converter and speed control for adapted pressure build-up and pressure maintenance without pressure surges - freely adjustable, constant speed via "manual operation" - non-return valve for blocking of pressure line - Storz coupling and quick-coupling for water inlet and outlet - optional with volume flow measurement (necessary for air volume determination in smart memo) - optional disinfection procedure for pump - optional with wheel set
